80 Exchange

  • Historic Renovation

A historic renovation restores the Jose Block at 80 Exchange St. back into a thriving, efficient, comfortable, gem of the Old Port.

The owners, 80 Exchange LLC, sought to perform a historic renovation of the Jose Block (also known as 80 Exchange) converting the class ‘C-B’ office spaces of the upper floors into class ‘A’ spaces in the heart of the Old Port. The owners wished to bring back this once handsome building and restore its place in the urban fabric as a good neighbor, and a leader in community development. Briburn led a team of design professionals in this endeavor and partnered with Warren Construction to execute the renovation.

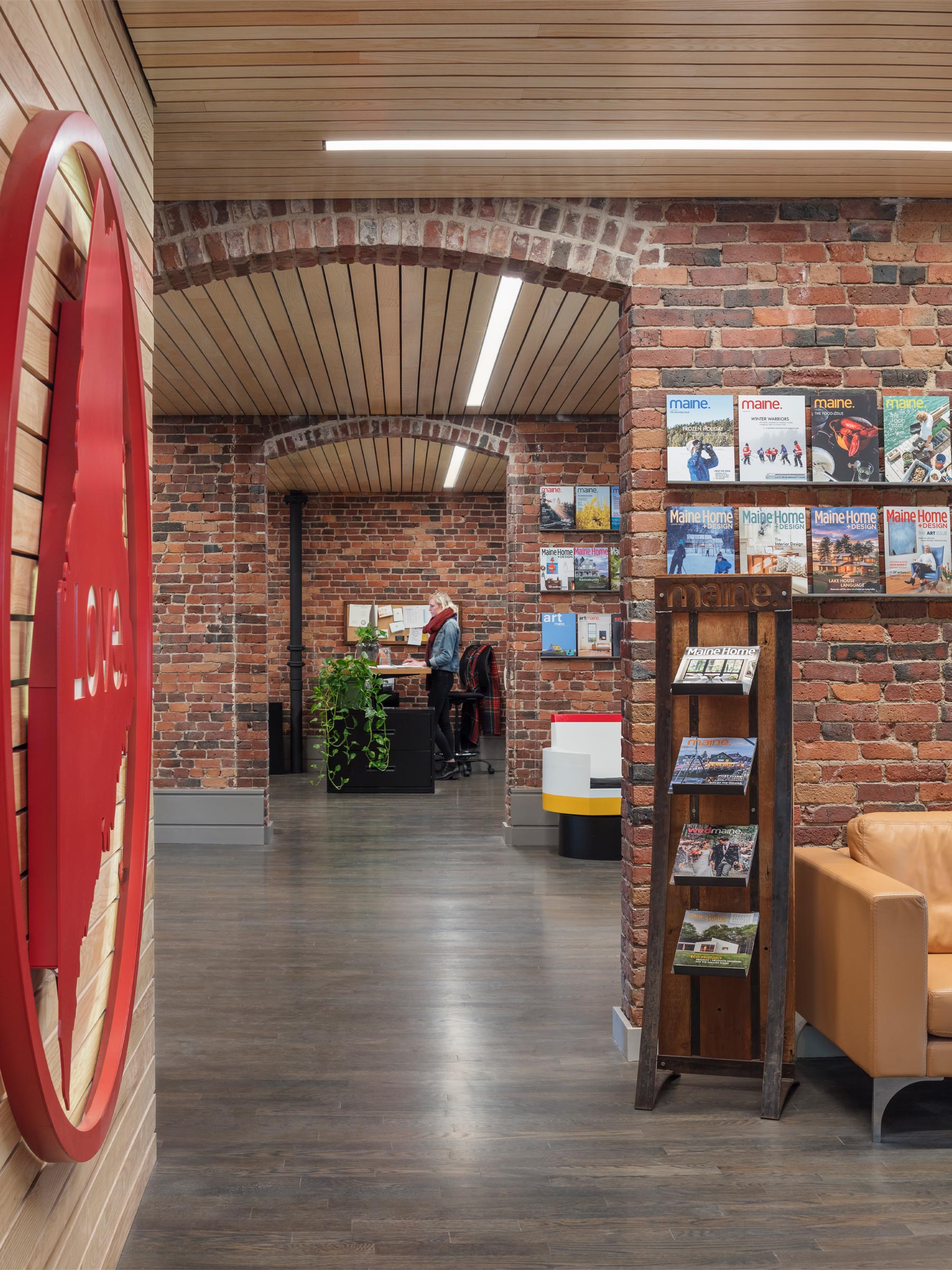

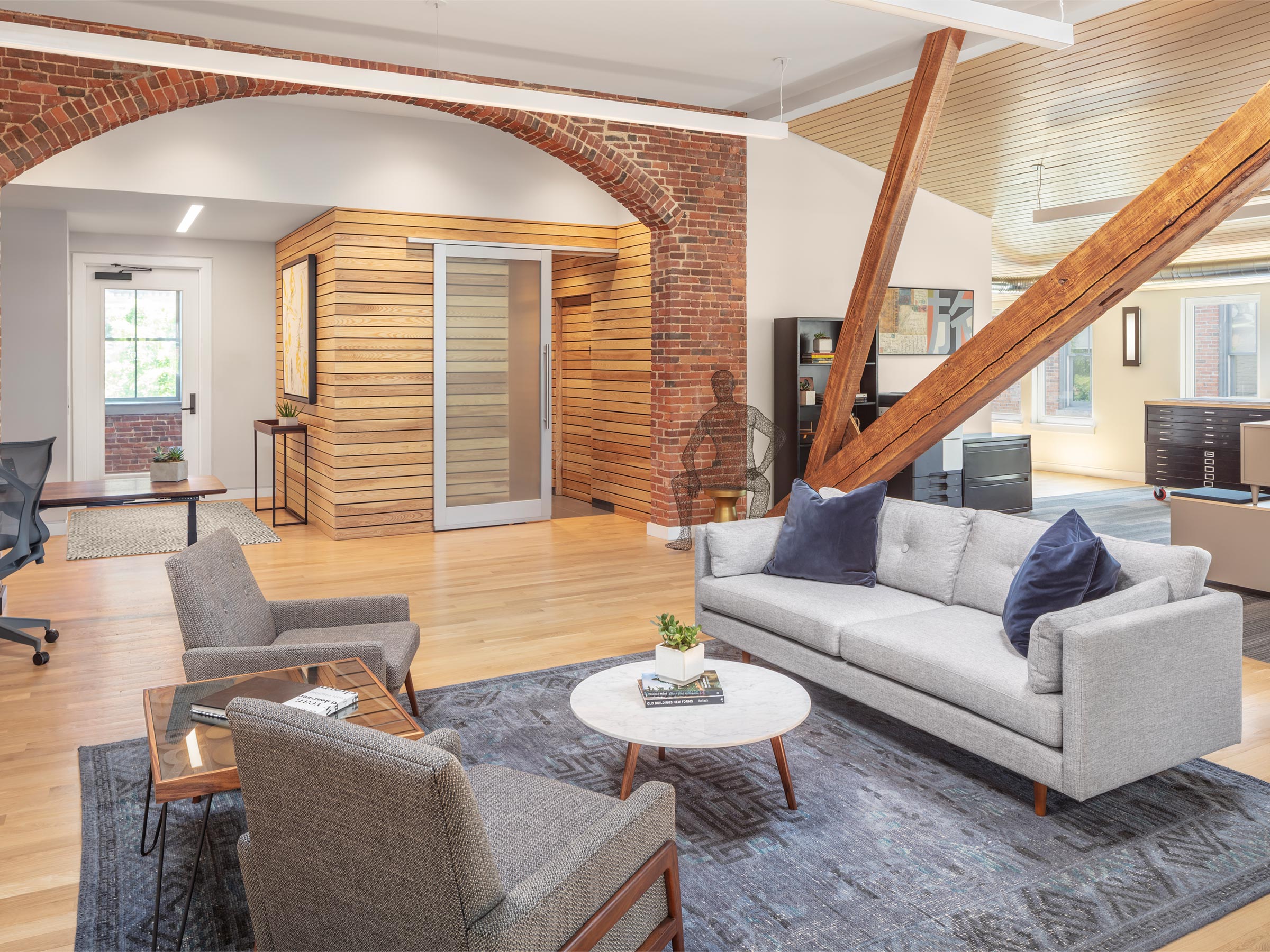

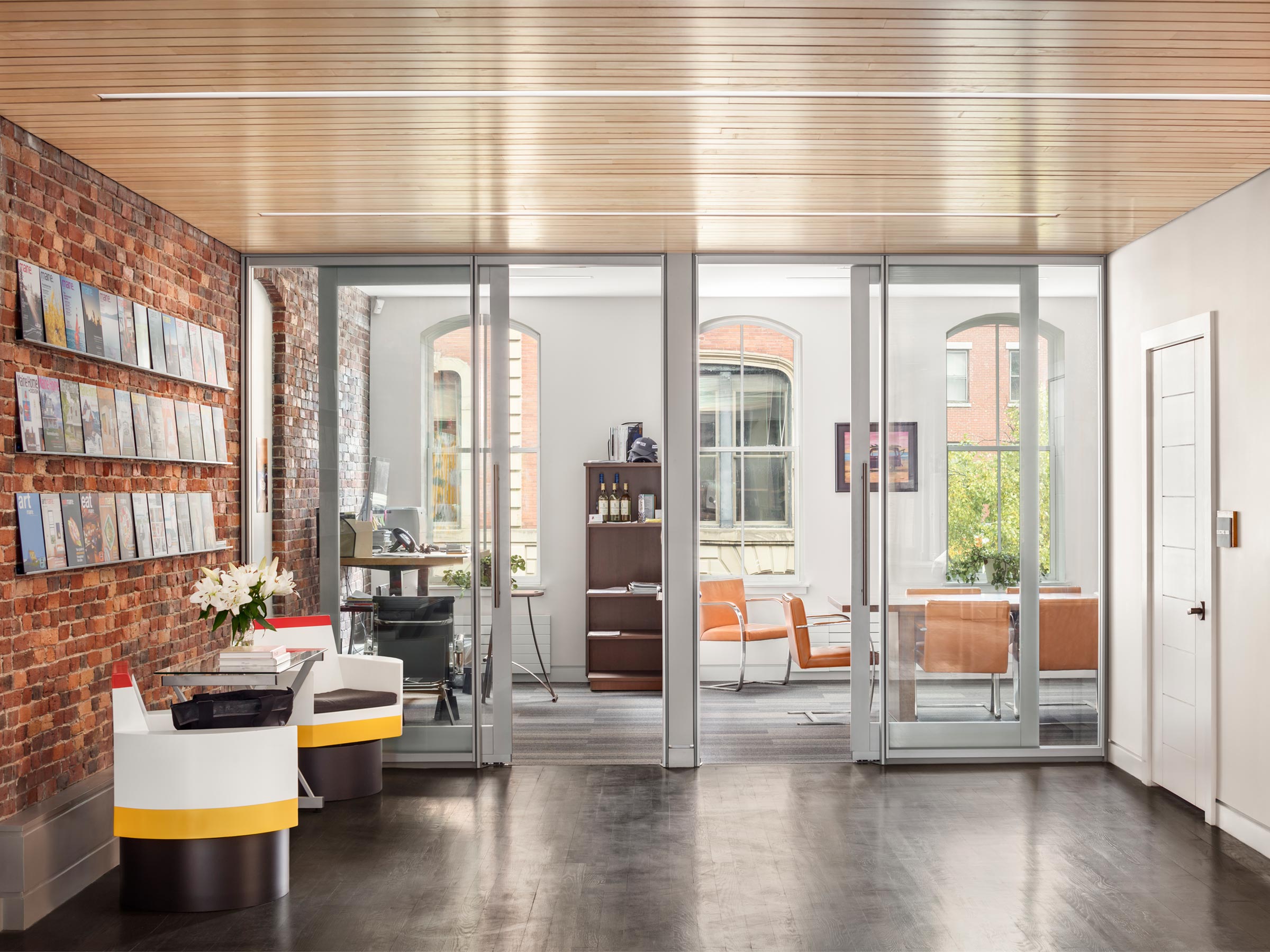

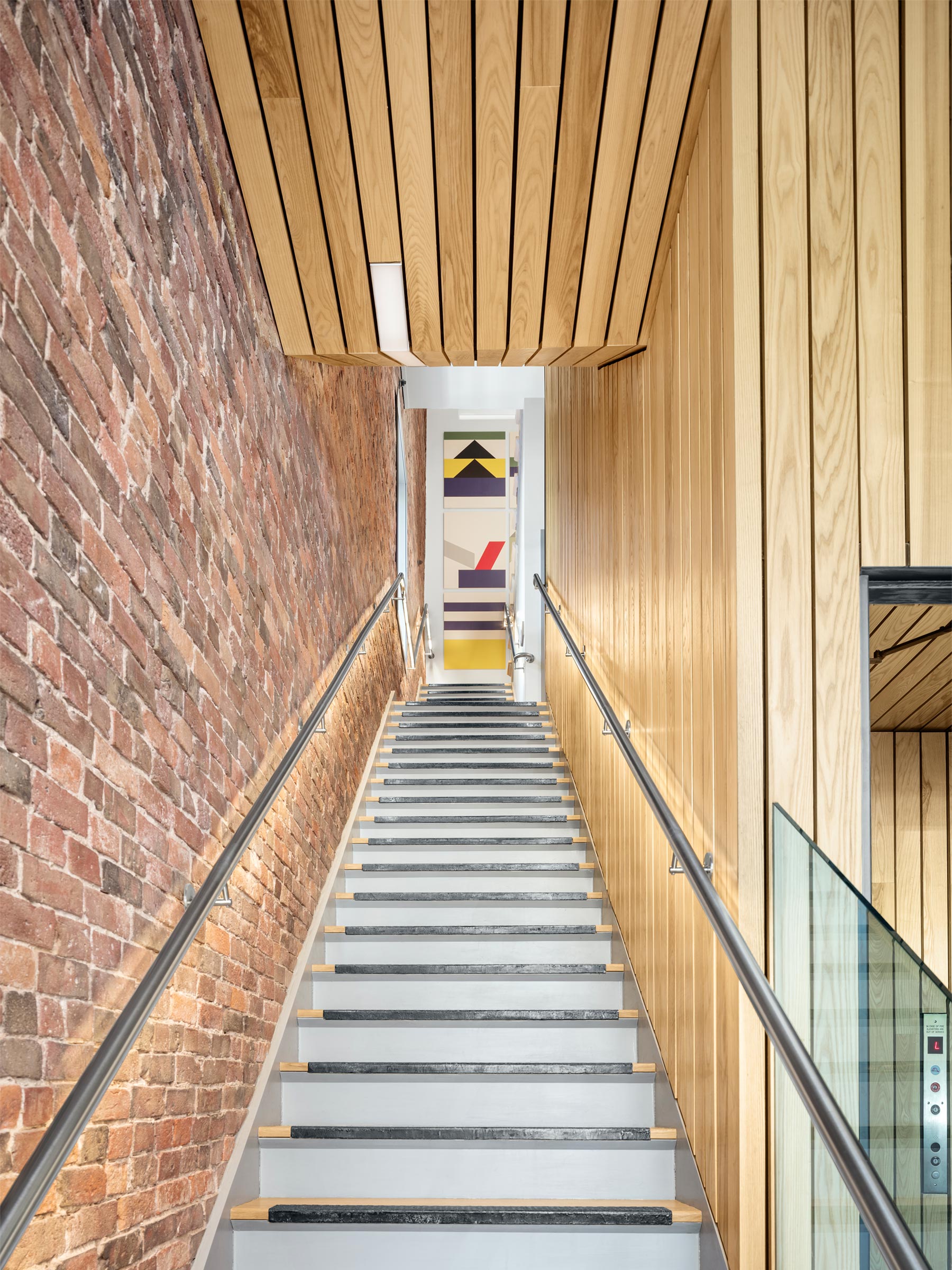

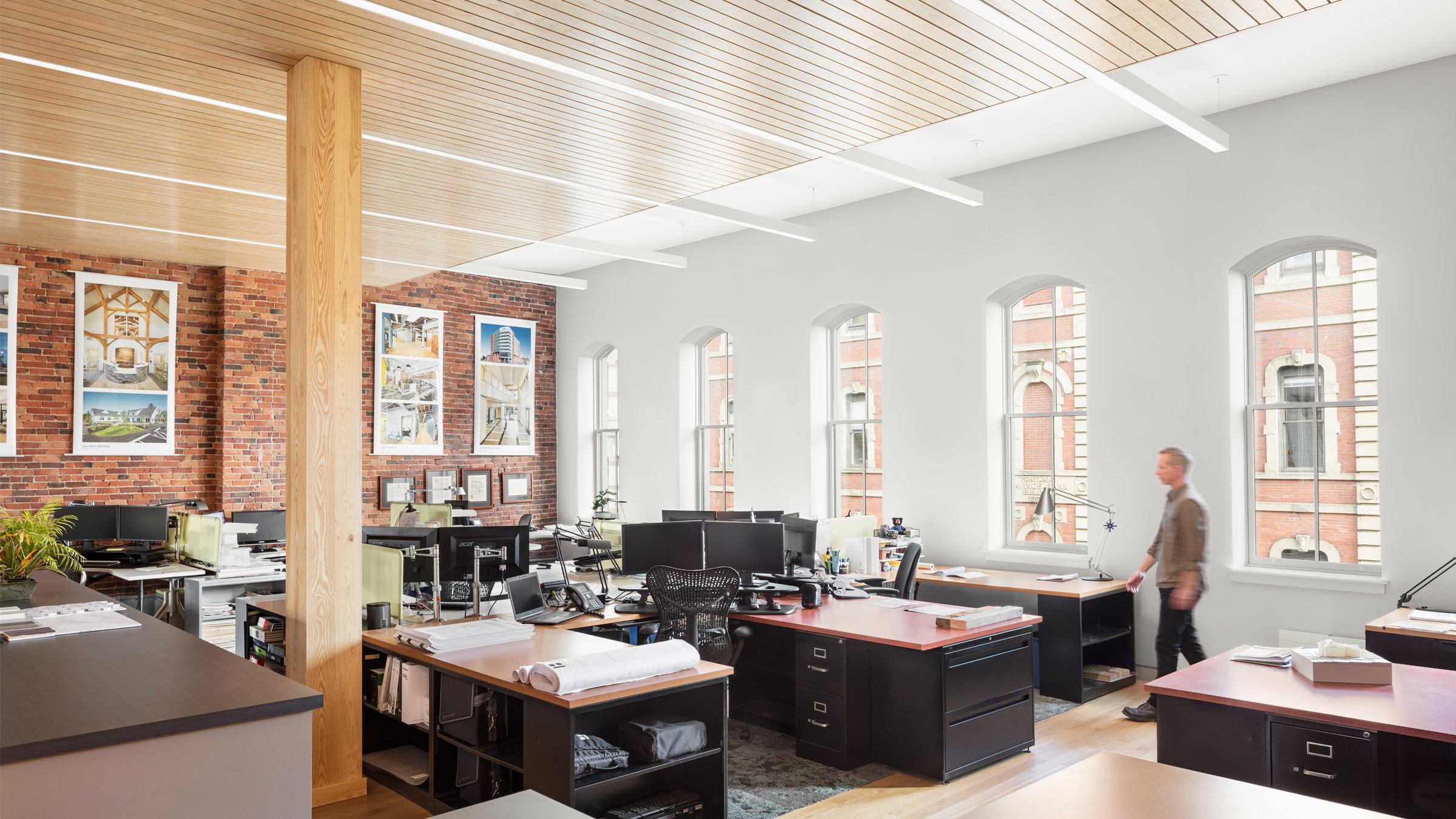

The exterior façade of the building was renovated and the street level storefront restored. The entrance, lobby, and common spaces were renovated to create a more welcome and modern tone. A new dormer was added to the south roof allowing the fourth floor to be expanded and filled with light. The existing truss structure of the fourth floor was sanded and sealed and celebrated as a character-defining feature. The third floor was completely opened up. Partitions were removed and the 8’ ceiling was expanded to 14’ thus restoring this level to a more open and dramatic space. A mechanical mezzanine was added to house a highly sophisticated and efficient chilled beam system to provide cooling and balanced ventilation. The windows were replaced with more efficient and historically appropriate double hung windows. The building’s exterior was insulated and sealed, and the building’s structure was reinforced and the floors were leveled. New finishes were installed throughout with new energy-efficient lighting. The Trompe l’oeil mural on the wall that faced the park was deteriorating and the wall beneath was in need of restoration. The wall was restored and a commission was established to seek public submissions and a new mural was designed and installed by artist Will Sears.

The Jose Block has been transformed from a building that has been negatively modified over the past five decades, to one that has leveraged its historic character, integrated modern technologies, and has been given new life for many decades more while enhancing the urban streetscape and its community.

Read More
  • Specifications
  • Achievements

Project Type

Commercial

Project Location

Portland, Maine

Project Year

2018

Project Size

11,400 sq. ft.

Design Team

Christopher Briley, Ian Parlin (Alumnus)

Contractor

Warren Construction

Partners/Consultants

L+L Structural Engineering, Ripcord Engineering, Bennett Engineering, Essex Preservation Consulting

Photos

Irvin Serrano

Challenges of Historic Renovation

The greatest challenge for this project was the existing building itself. The layers of poor renovation work that saturated the building over the decades hid many problems initially and created strenuous working conditions. Working on a building of this age means working with surfaces that are out of plumb, level, and square. But for this building it was particularly so. Existing floors were dramatically out of level and required severe alterations and replacement in places. It was discovered early in the construction process that one side of the building was 9” shorter than the other, this simple dimensional anomaly rippled through the entire construction process and caused great challenges.

Being located in the busiest part of Portland on a tight site created significant challenges for every aspect of exterior work and complicated each delivery of material. This made scheduling of work through the winter highly critical.

While the upper three floors were being worked on, the businesses in the lower level (Swiss Time and The Grill Room) largely remained open. Again, timing of work coordinating with business owners and integration with city officials became critical to the success of this project especially while the storefronts of these ground floor businesses were being replaced while remaining open. It is a testament to everyone involved in the project, especially Warren Construction, that the project was a success.

"I enjoyed working with BriBurn on a significant historic rehab project. They were always willing to look at solving problems in a new way, always focused on energy efficiency and solid follow through to the end."

Jim Brady

Client - Fathom Companies
